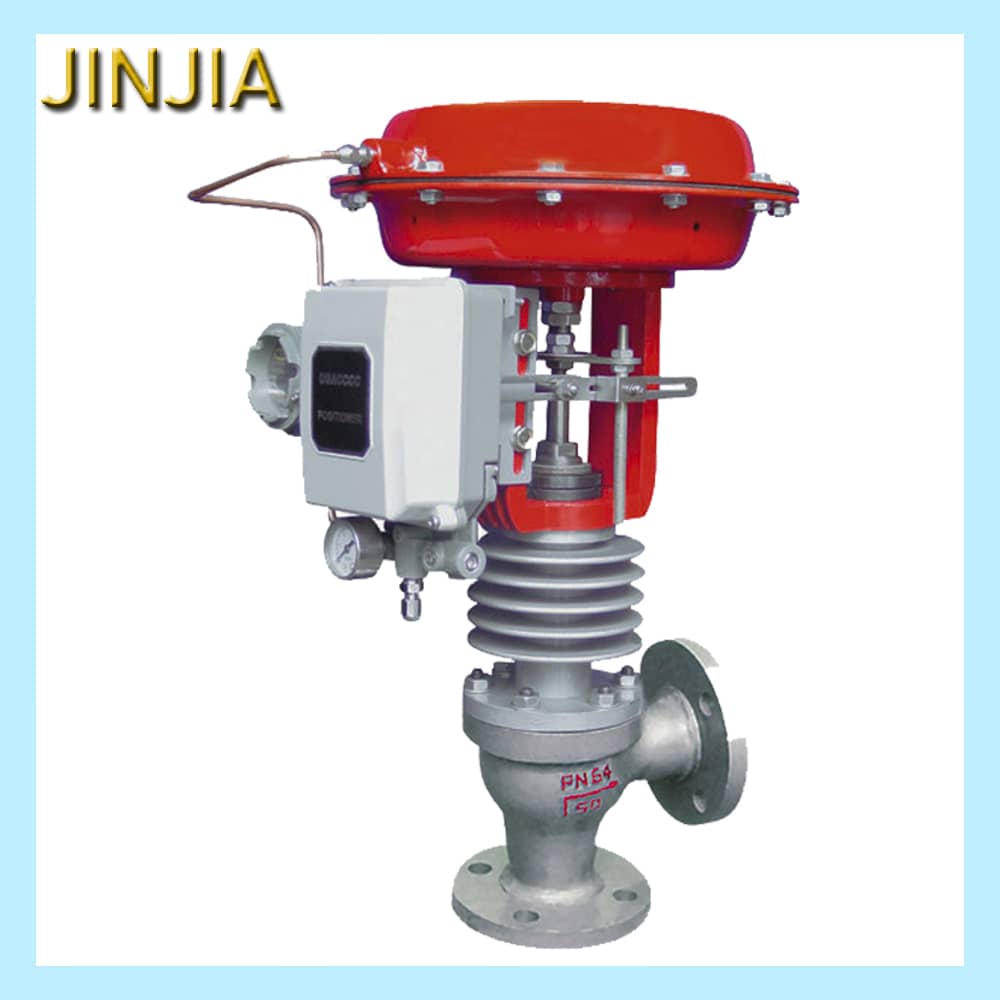

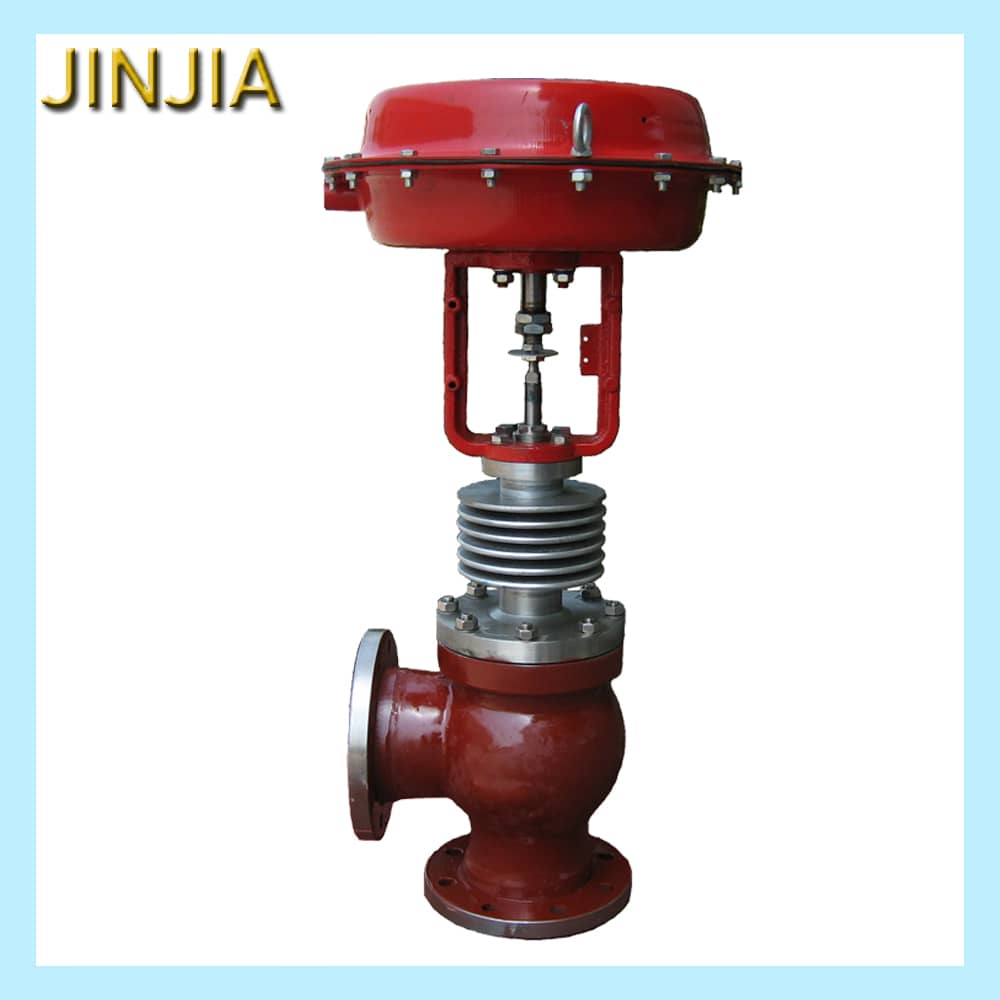

ZXSP REGULATOR is a new series of pneumatic film angle structure and single-seat regulating valve which is equipped with top-guided pneumatic and Multi-Spring film actuator.ZXSP REGULATOR has the advantages of compact structure, light weight, reaction quick, less pressure drop loss, large capacity, accurate flow,require minimal maintenanc etc.It is Widely used in the precise control of gas, liquid, steam and other medium, and process parameters such as pressure, flow rate, temperature and liquid level easily maintain at a desired set point.
This regulator is usually installed in 90 ° bend position and there is no unseen place and easy to clean so it is specially suitable for the medium of big viscosity, easy to crystallize and containing suspended particles and it is mostly used in food industry.
There are four models to choose from:1.Insulation Type,2.Low Temperature Type,3.High Temperature Heat Type,4.Bellows Seal Type
This regulator is designed and manufactured according to the standard of AMSE/API/BS/DIN/GB.we can also design and manufacture according to buyer’s special requirement.
Nominal diameter DN(mm) | 20 | 25 | 32 | 40 | 50 | ||||||||||||||||||||
The seat diameter DN(mm) | 10 | 12 | 15 | 20 | 10 | 12 | 15 | 20 | 25 | 32 | 32 | 40 | 32 | 40 | 50 | ||||||||||
Coefficien t(KV) | Line | 1.8 | 2.8 | 4.4 | 6.9 | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 17.6 | 17.6 | 27.5 | 17.6 | 27.5 | 44 | |||||||||
Percentage | 1.6 | 2.5 | 4.0 | 6.3 | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 16 | 16 | 25 | 16 | 25 | 40 | ||||||||||
Rated stroke(mm) | 16 | 25 | |||||||||||||||||||||||
Effective area of diaphragm Ae(cm2) | 280 | 400 | |||||||||||||||||||||||
Nominal diameter DN(mm) | 65 | 80 | 100 | 125 | 150 | 200 | 250 | ||||||||||||||||||
The seat diameter DN(mm) | 65 | 65 | 80 | 65 | 80 | 100 | 125 | 125 | 150 | 150 | 200 | 250 | |||||||||||||
Coefficien t(KV) | Line | 69 | 69 | 110 | 69 | 110 | 176 | 275 | 275 | 440 | 440 | 690 | 1100 | ||||||||||||
Percentage | 63 | 63 | 100 | 69 | 100 | 160 | 250 | 250 | 400 | 400 | 630 | 900 | |||||||||||||
Rated stroke(mm) | 40 | 60 | 100 | ||||||||||||||||||||||
Effective area of diaphragm Ae(cm2) | 600 | 1000 | 1600 | ||||||||||||||||||||||
Nominal pressure (PN)/CLass | MPa | 1.6，2.5，4.0，6.4(6.3)/2.0，5.0，11.0 | |||||||||||||||||||||||
Bar | 16，25，40，64(63)/20，50，110 | ||||||||||||||||||||||||
Lb | ANSI：Class150、Class300、Class600 | ||||||||||||||||||||||||
Flow characteristic | Line; Percentage | ||||||||||||||||||||||||
Adjustable (R) | 50:1 | ||||||||||||||||||||||||
Spring (signal) KPa | 20～100、40～200、80～240、（20～60、60～100） | ||||||||||||||||||||||||
Air pressure Ps（MPa） | 0.14/0.25/0.3 | ||||||||||||||||||||||||
Leakage | Class IV；Class VI | ||||||||||||||||||||||||
Working Temperature T(℃) | Normal Temperature | -20～200、-40～250、-60～250 | |||||||||||||||||||||||
Heat Dissipation | S | -40～350、-60～350 | |||||||||||||||||||||||
High Temperature | G | 350～550 | |||||||||||||||||||||||
Low Temperature | D | D0：-60～-100、D1：-100～-200、D2：-200～-250 | |||||||||||||||||||||||
Adjust | Q | -40～150 | |||||||||||||||||||||||
Please refer to the attachment for details:
ZXSP Pneumatic Film Angle Regulating Valve2.pdf
