Pneumatic Regulating Valve series

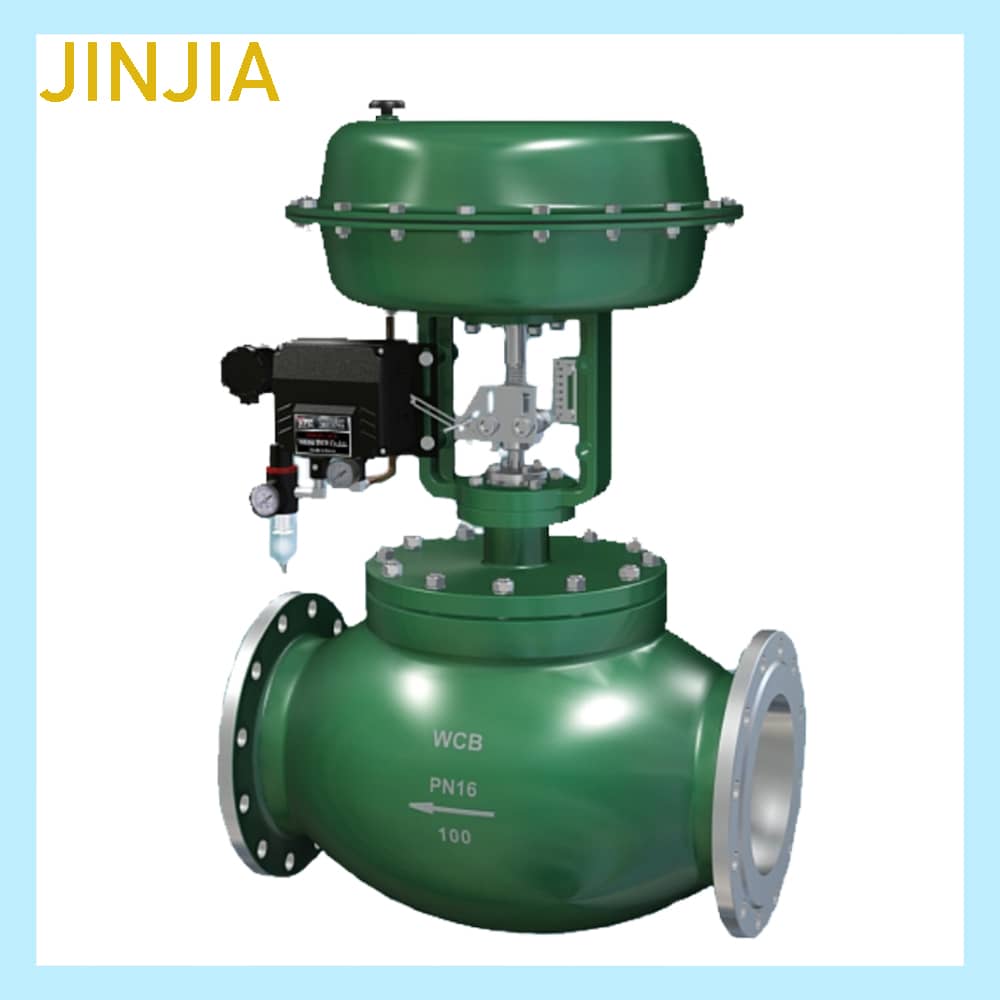

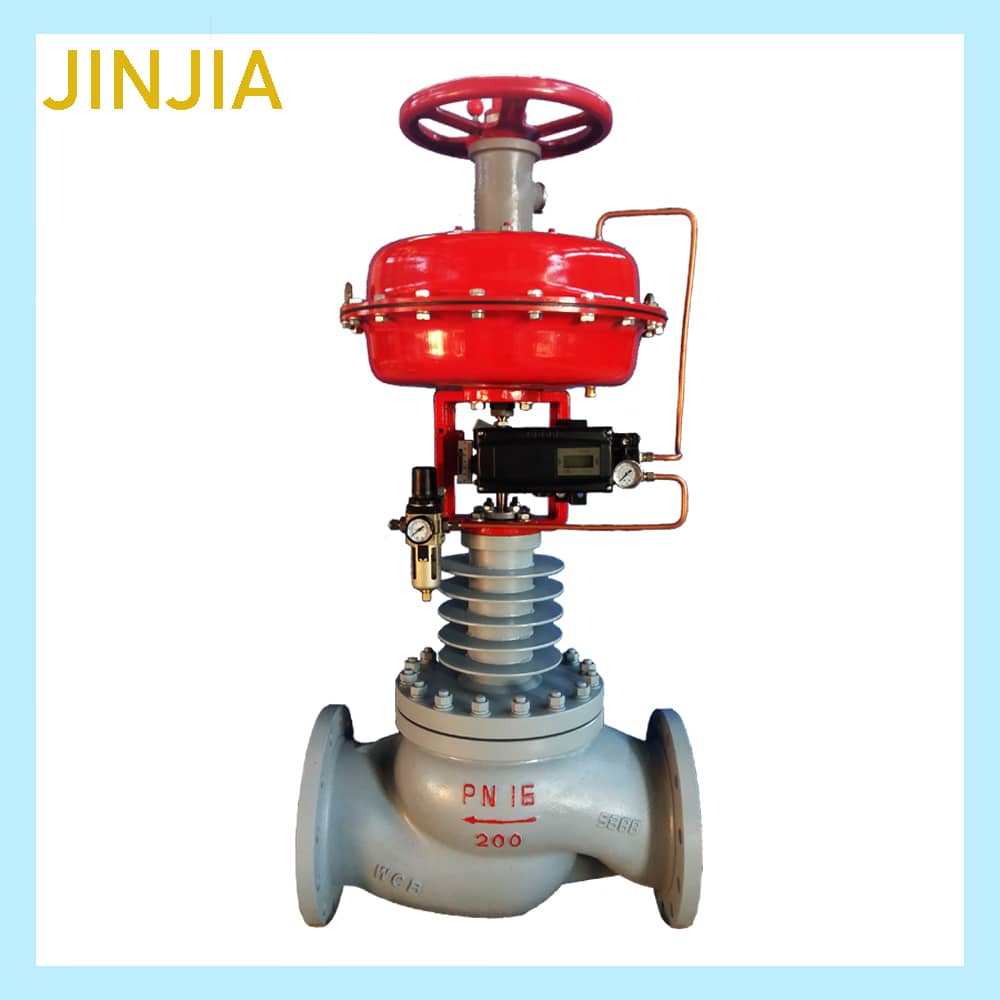

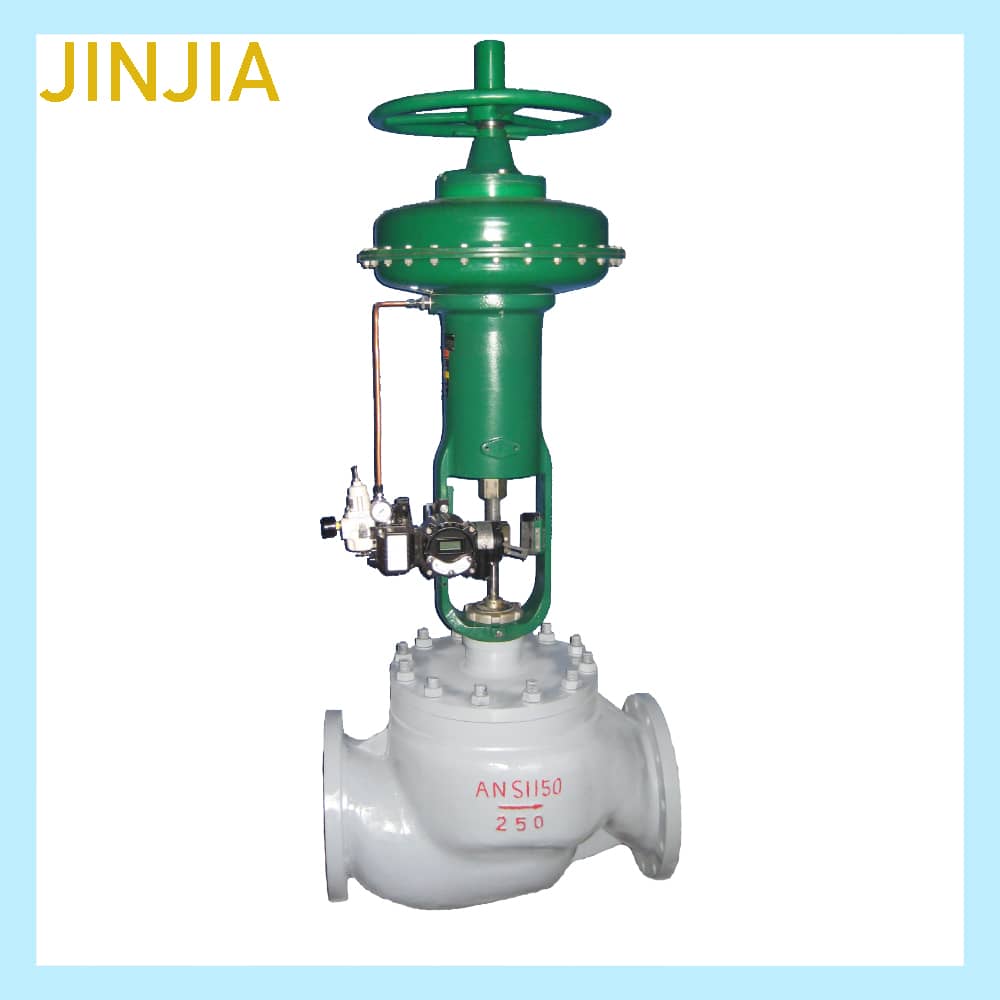

ZXM Pneumatic film sleeve regulating valve

ZXM Pneumatic film sleeve regulating valve

Product description: ZXM REGULATOR is a pressure balance type regulating valve which consists of multi-Spring diaphragm pneumatic actuator and low flow resistance sleeve valve.
INQUIRY EMAIL

ZXM REGULATOR is a pressure balance type regulating valve which consists of multi-Spring diaphragm pneumatic actuator and low flow resistance sleeve valve.

ZXM REGULATOR has the advantages of 1.with balanced valve core,the unbalance force is small and allow the the large pressure difference,2.Valve core guide is large, it can improve the eddy currents and oscillations caused by the impact and reduce valve damage. 3.Simple structure, light weight,easy assembly,disassembly and maintenance. 4.with little noise and large flow .

This regulator is designed and manufactured according to the standard of AMSE /API /BS/ DIN/GB.And it's widely used in the precise control of gas, liquid and steam medium,the process parameters such as pressure, flow rate, temperature and liquid level can be easily kept in a set value.Especially suitable for large flow, large pressure difference and the leakage less demanding applications.

Nominal diameter DN(mm)		20							25						32		40				50
The seat diameter DN(mm)		10	12		15		20		10	12	15	20		25	32		32		40		32		40		50
Coefficien t(KV)	Line	1.8	2.8		4.4		6.9		1.8	2.8	4.4	6.9		11	17.6		17.6		27.5		17.6		27.5		44
	Percentage	1.6	2.5		4.0		6.3		1.6	2.5	4.0	6.3		10	16		16		25		16		25		40
Rated stroke(mm)		16													25
Effective area of diaphragm Ae(cm²)		280													400
Nominal diameter DN(mm)		65		80				100					125			150				200				250
The seat diameter DN(mm)		65		65		80		65		80	100		125			125		150		150		200		250
Coefficien t(KV)	Line	69		69		110		69		110	176		275			275		440		440		690		1100
	Percentage	63		63		100		69		100	160		250			250		400		400		630		900
Rated stroke(mm)		40											60											100
Effective area of diaphragm Ae(cm²)		600											1000											1600
Nominal pressure (PN)/CLass		MPa				1.6，2.5，4.0，6.4(6.3)/2.0，5.0，11.0
		Bar				16，25，40，64(63)/20，50，110
		Lb				ANSI：Class150、Class300、Class600
Flow characteristic		Line; Percentage
Adjustable (R)		50:1
Spring (signal) KPa		20～100、40～200、80～240、（20～60、60～100）
Air pressure Ps（MPa）		0.14/0.25/0.3
Leakage		Class IV；Class VI
Working Temperature T(℃)	Normal Temperature					-20～200、-40～250、-60～250
	Heat Dissipation	S				-40～350、-60～350
	High Temperature	G				350～550
	Low Temperature	D				D₀：-60～-100、D₁：-100～-200、D₂：-200～-250
	Adjust	Q				-40～150
