Water Supply Valve

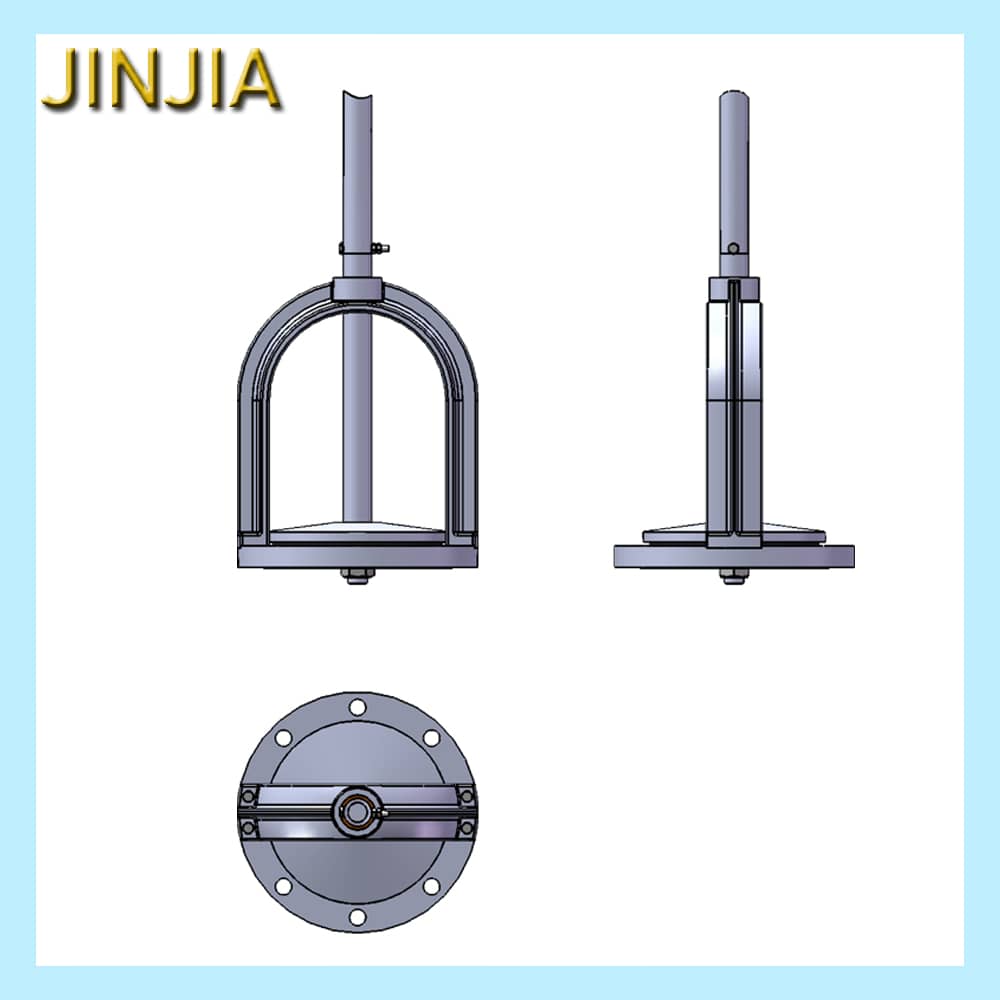

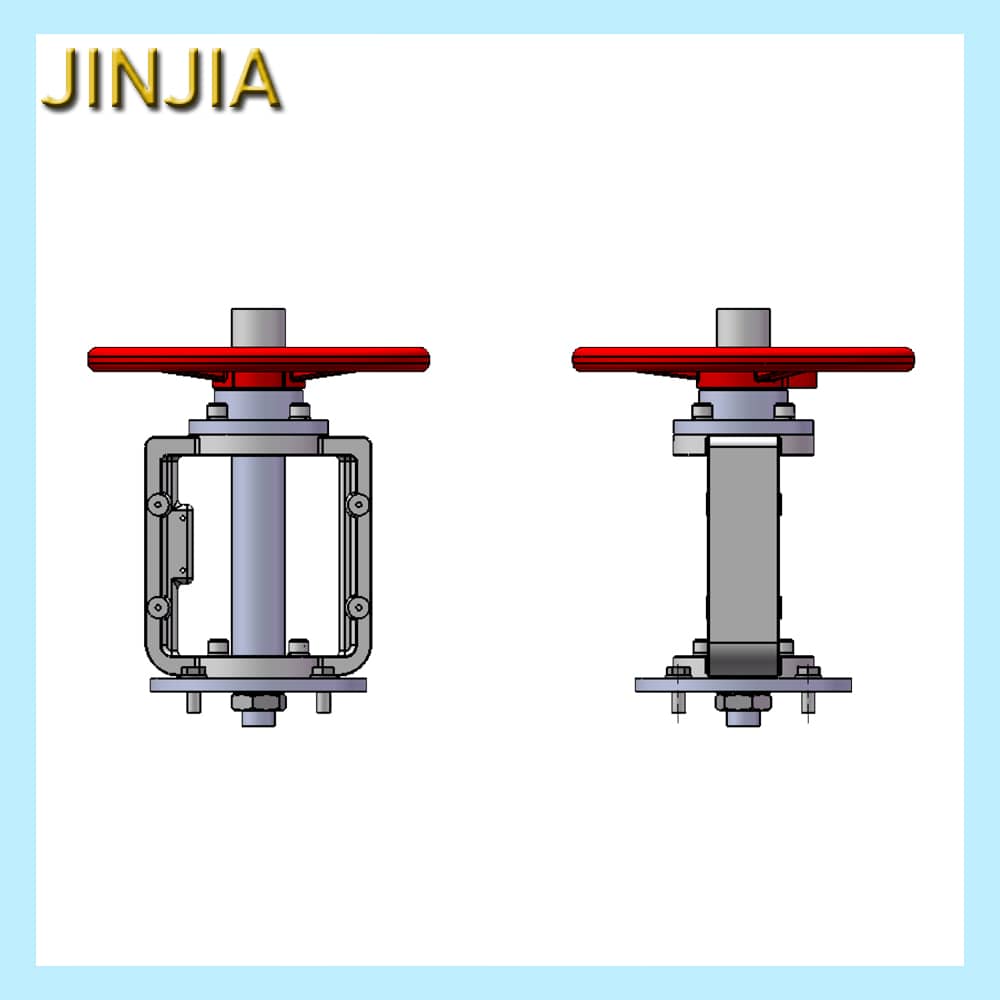

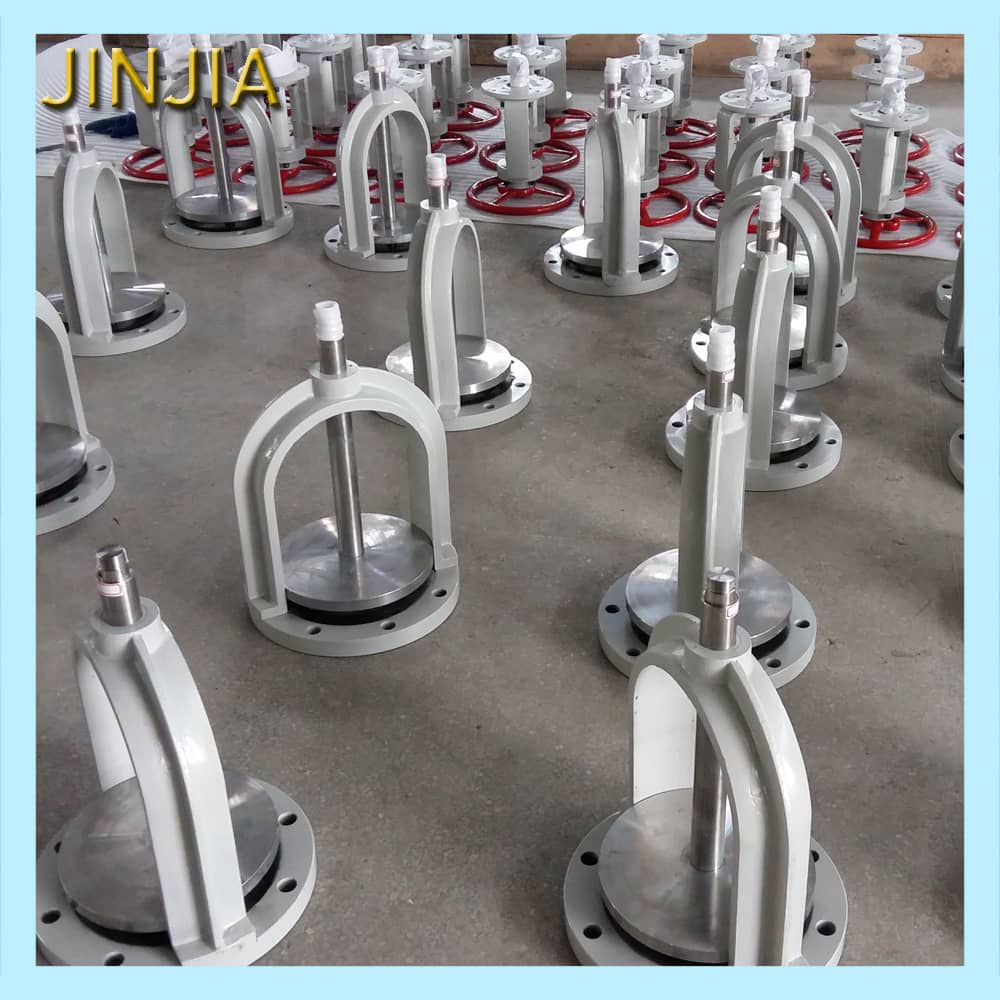

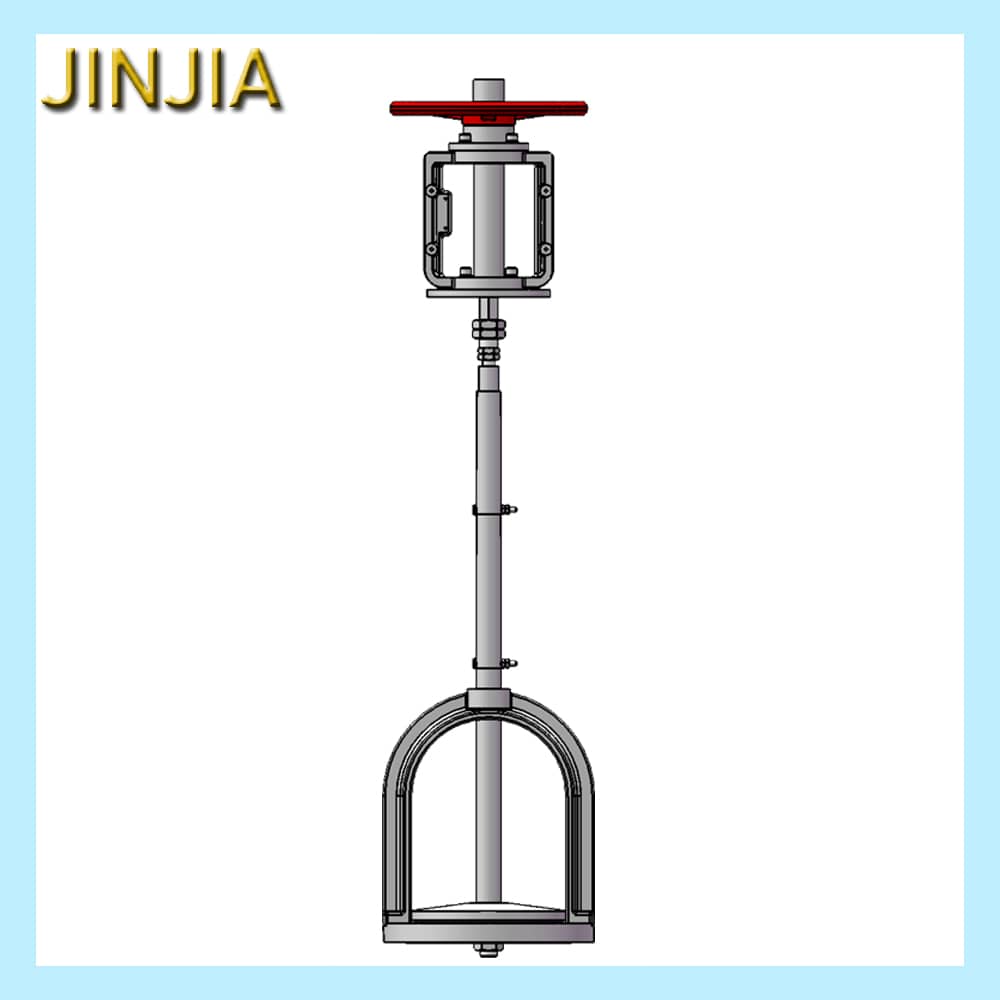

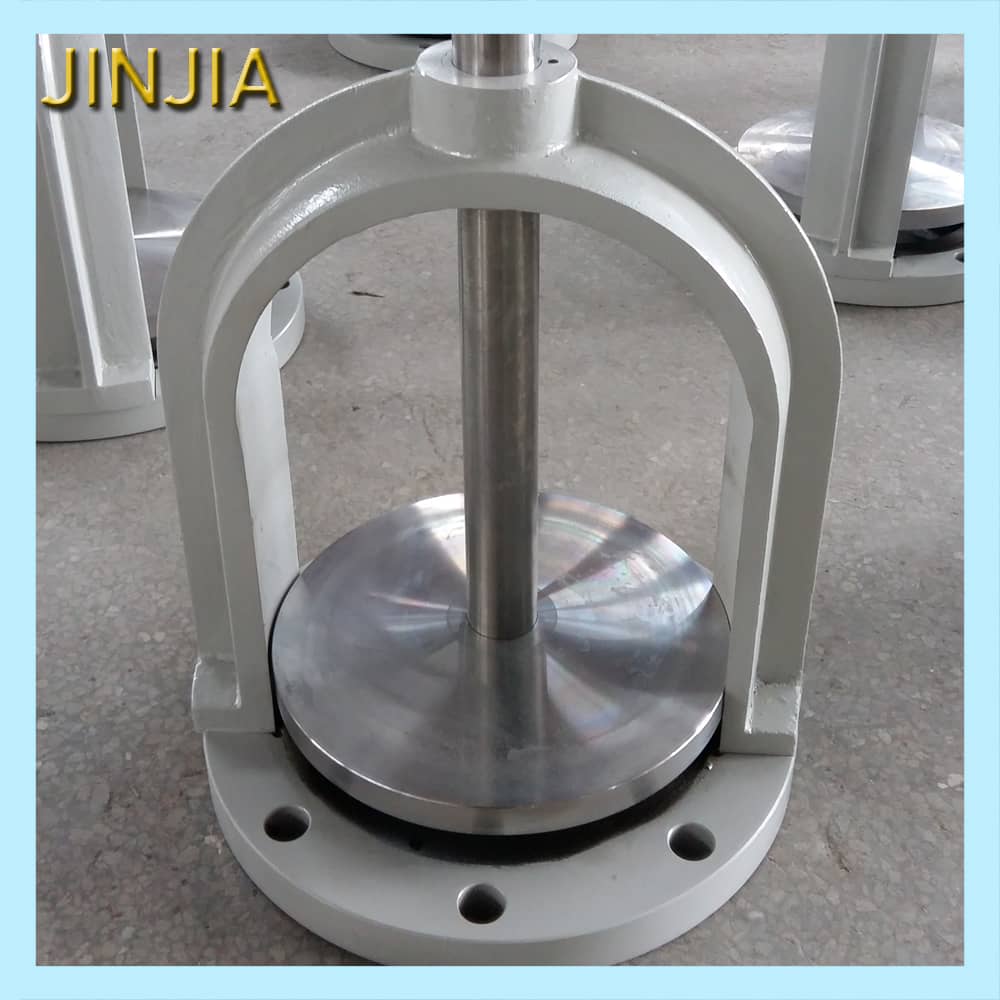

PNF Discharging Valve / Mud Valve

Product description: Generally set in the cone shape bottom of the tank or pool,used for discharging the sedimentation in the tank or the pool ,Usually equipped with a electric or pneumatic actuator,but it can be only equipped with the hand wheel and extension rod if the start and close force required in the working condition is small.It can be used in the form of one single set or several sets.The material for the valve body is cast iron.We have the advantages of quality and price for this series valves.welcome to purchase and use this valve.
INQUIRY EMAIL

Generally set in the cone shape bottom of the tank or pool,used for discharging the sedimentation in the tank or the pool ,Usually equipped with a electric or pneumatic actuator,but it can be only equipped with the hand wheel and extension rod if the start and close force required in the working condition is small.It can be used in the form of one single set or several sets.The material for the valve body is cast iron.We have the advantages of quality and price for this series valves.welcome to purchase and use this valve.

Characteristics:

1、The opening is adjustable,it can be used as one size for different discharging.

2、The valve plate is cone shape and with own direction quided,so the start force is small.

3、Good sealing performance and long service life.

4、if equipped with electric or pneumatic actuator,it can be controlled automatically.

Please refer to the attachment for details:

PNF Discharging Valve Mud Valve.pdf
